Detail 1

The Canadian Cobalt Project consists of 43 unpatented mining claims and 1 mining lease on patented land covering approximately 7,567 ha (18,700 acres) located in the Silver Center of the Cobalt Camp, Ontario.

High grade cobalt-silver properties, excellent metallurgy, substantial upside

Close proximity to several historic mines (including the former producing Keeley
& Frontier), as well as the recently announced First Cobalt/Cobalt One claims

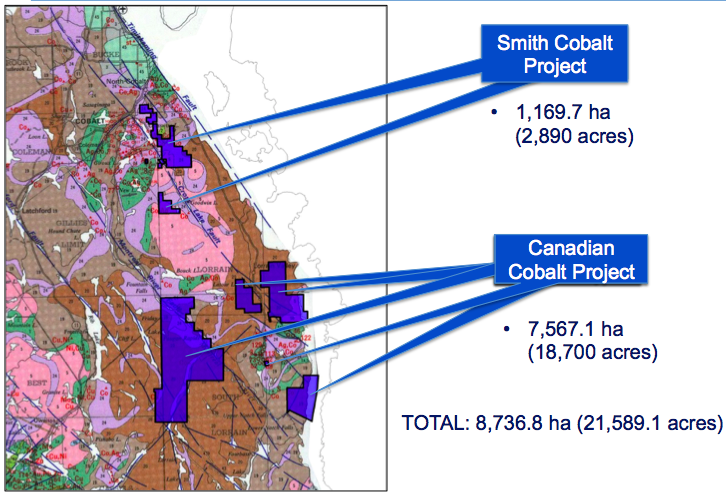

LOCATION CONTEXT

cobalt maps.png

N.I. 43-101 Technical Report: Smith & Canadian Cobalt Projects

Download PDF (button)

Geological Setting

The properties are generally underlain by Huronian Cobalt Group metasediments with abundant occurrences of the Nipissing diabase sill/dyke. Both the upper and lower contacts of the sill occur on the property. The Cobalt Group metasediments include quartzites and arkoses of the Lorrain Formation, as well as significant outcrops of siltstones and greywackes of the Coleman Formation, which are locally in contact with the base of the sill.

There are several known cobalt occurrences found on the land package – all reported in the Ontario Mineral Deposit Inventory files:

  • Labine-McMahon showing – samples collected from a quartz-carbonate vein adjacent to an aplite dike contain cobaltite, arsenopyrite and bismuthinite. An assessment of the heavy material after a partial separation from the gangue returned: 32.54% As, 4.85% Fe, 21.09% Co, 1.18% Ni, 6.26% Bi and 0.09% Zn. A sample of wall rock adjacent to a ¾” wide quartz-carbonate vein assayed 1.10% Co and 0.21% Ni. Sample was collected in 1956 and assayed by the Cobalt Resident Geologist.

  • Friday Creek showing – government reports show “a 20cm quartz-calcite veins with 17 g/t Ag, in Nipissing diabase.

  • The mining lease on the Canadian Cobalt Project is the Silver Eagle property. Located on this property, the Silver Eagle mine (which operated around 1918) produced 8,000 ounces of silver from a 6-meter section of mine workings that crossed the property from the adjacent Wettlaufer Mine (cobalt was not recovered, as was typical for that era). Geological mapping shows the claim to be underlain by the Nipissing diabase sill in contact with “undifferentiated” intermediate to mafic volcanics, basalts and pillow lavas. This is the classic setting for Cobalt Camp mineralization.

ConcessionOwnershipHistorical WorkingsAccessInfrastructureCanadian
Cobalt Claims100%*Samples collected from
quartz-carbonate veins Hwy. 567Road, waterSilver Eagle
Mining Lease100%*Past producing mineHwy. 567Road, water
